Capsule Marking System Home Page
CMS-2000
Samples

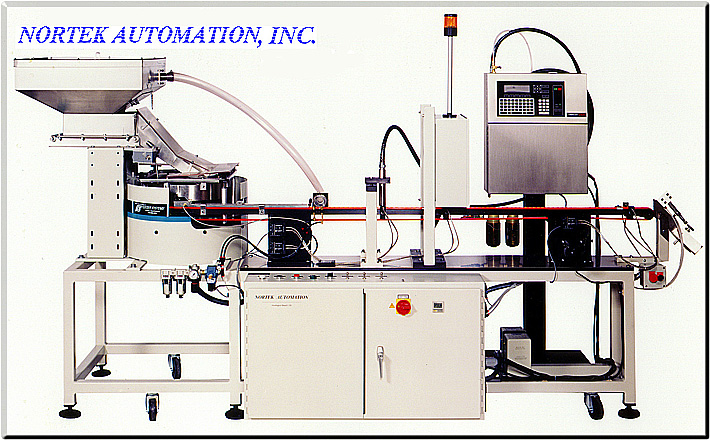

NON CONTACT MARKING systems for capsules and tablets. The feeding system singulates capsules delivered from overhead bulk hoppers. The conveying system orients, stabilizes and transports the product past the ink jet print head. Throughput rates in excess of 1200 capsules per minute are achieved.
Standard Features

Overhead Prefeeder - Stainless Steel hopper and chute. Variable speed prefeed motor.

Centrifugal Feeder - Cast urethane bowl. Independent speed controls for disk and bowl.

Conveyor System - FDA accepted urethane belts driven by a variable speed DC drive.

Ink Jet Printer - Food grade ink (FDA accepted), custom characters, computer interface, keyboard lockout.

PLC Control Panel - Auto/Manual mode, variable speed controls, product detect circuits, power conditioning.

Optional Features

Management Information Software - Product count. Productivity data recording and print out.

Automatic Divert System - Diverts product to a new container after a preset product count is completed.

Vision Verification System - Verifies print quality.

Production Line Integration - Host computer & barcode interface software. Adjacent machine interlocks.
