Packaging Systems

CP4000

 Four Station Clamshell Packaging
 Package labeling with component Traceability data
 Barcode, 2D, Serial #s, Date Codes, Graphics
 Code verification & vision inspection options
 Secure seal with Tamper evident label
 NO RF, NO Ultrasonic, NO Heat sealing, NO UV curing, NO Glue, NO Chemicals

  Datasheet in PDF file     Size=210KB

Clamshell Packaging

 Eleven Station Clamshell Packaging
 Device Programming and Test Stations
 Vision Inspection of Device and Package marking
 Product & package labeling with Traceability data
 Barcode, 2D, Serial #s, Date Codes, Graphics data
 Secure seal with Tamper evident label
 NO RF, NO Ultrasonic, NO Heat sealing, NO UV curing, NO Glue, NO Chemicals

  Datasheet in PDF file     Size=570KB

Electro Pack

 Six Station Clamshell Packaging
 Printed Circuit Board (PCB) & Component packaging
 Places product & literature inserts into clamshell package
 Tamper evident label is wrapped around clamshell
 Product & package labeling with Traceability data
 Barcode, 2D, Serial #s, Date Codes, Graphics, Code verification & vision inspection options
 NO RF, NO Ultrasonic, NO Heat sealing, NO UV curing, NO Glue, NO Chemicals

  Datasheet in PDF file     Size=210KB

Cartoning, Labeling

 Carton Erector, Product Labeling, Product Insert, Carton Labeling, Collating

Datasheet in PDF file     Size=206KB

BioMedical Label & AutoBag

 Automatic Labeling & Bagging for BioMedical Products

Datasheet in PDF file     Size=137KB

Label & Final Packaging

 Labeling & Packaging Electronic, Retail, Consumer Products
 Multiple labels placed on products and package
 Unique ID (UID), Product Traceability
 Clamshell Packaging closed & sealed with product label
 Management Information System Interface

Datasheet in PDF file     Size=126KB

Print & Apply Labeling Systems
Antares 3800

 In-line, High Speed Print & Apply Precision Labeling System
 Flexible, Versatile, Multiple Labels, Multiple Panel Sizes
 SMEMA Compatible
 Zebra 96XiIII 600 dpi Printer
 Highly Integrated Label Creation & Database Software

Datasheet in PDF file     Size=265KB

Polaris 3600

 Low Cost In-line, Print and Apply Labeling System
 Single Label Application
 SMEMA Compatible
 Zebra 96XiIII 600 dpi Printer
 Highly Integrated Label Creation and Database Software
 Small Footprint

Datasheet in PDF file     Size=197KB

Comet 3200

 In-Line Capable
 Two Sided Print & Apply Precision Labeling System
 Well suited for PC Card, Flash, ATA, and PCMCIA devices
 Card Inverting Station (labels both sides)
 SMEMA Compatible
 Zebra 96XiIII 600 dpi Printers
 Highly Integrated Label Creation and Database Software

Datasheet in PDF file     Size=247KB

Pulsar Benchtop Labeling Systems

 Pulsar Label Applicator with automatic part feeder
 Pulsar SL Print and Apply Label Applicator with automatic part feeder
 Accurate, Repeatable Label Placement
 Zebra 110XiIII 600 dpi Printer with Pulsar SL

Datasheet in PDF file     Size=79KB

Equinox 3000

 Manually-fed, Low Cost, Print & Apply Labeling System
 Accurate, Repeatable Label Placement
  Flexible, manaul setup for labeling a variety of parts
 Zebra 96XiIII 600 dpi Printer
 Highly Integrated Label Creation and Database Software

Datasheet in PDF file     Size=159KB

PA3000SL

High Throughput Labeling System for Memory Modules
Versatile DIMM, DDR, RIMM Ready
600 dpi High Resolution Thermal Transfer Printer
Internal Diagnostic Feature
Magazine Feeders available for 72, 100, 144, 168, 200 pin  SIMM/DIMM/RIMM/SODIMM
Places up to 1,200 Labels per Hour
Accurate, Fast, easy to set-up

                                         Datasheet in PDF file     Size=172KB

Cable Wrap Labeling System

 Print on demand, serialization
 Accurate, repeatable application
 Self-laminating labels
 Barcode, 2D, Graphics
 High quality, 600dpi

Datasheet in PDF file     Size=70KB

LabelSmart Software
Nortek's LabelSmart Software Suite is a modular label creation system designed for Nortek's line of label applicators. The package provides a consistent look-and-feel to each station. Label data, including serial numbers and date codes can be maintained locally or over a network.

Datasheet in PDF file     Size=153KB


Laser & Inkjet Marking Systems

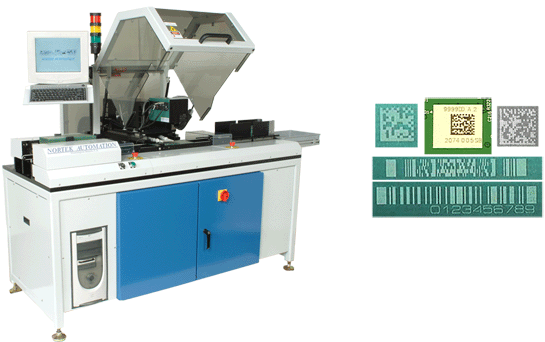

SOL850 Laser Marking System

 In-line, Laser Marking System
 Mulitple Marks Per Product, Automatic X-Y Positioning
 Date Code, Lot Number, Serialization
 2D Codes, Barcodes, Graphics, Alphanumeric
 Integrated PCB loader/unloader
Highest throughput, Smallest machine footprint

Datasheet in PDF file     Size=90KB

IPA 1800 Inkjet Marking System

 In-line, Inkjet Product Marking System
 Used in electronic manufacturing, pharmaceutical, food, and medical
 Mulitple Marks Per Product, Automatic X-Y Positioning
 Barcode, Date Code, Lot Number, Serialization

Datasheet in PDF file     Size=237KB

Additional Inkjet Marking Systems


Fully Integrated Circuit Board Processing Lines

Memory Board Processing Line

 Memory Module, Processing & Packaging
 Print & Apply Labeling System
 IDP-4000 De-Paneler
 IRH-4000 Multi-Site Test Handler
 Reduces Labor Costs
  Increases productivity and insures product integrity

Datasheet in PDF file     Size=179KB

PCB Processing Line

 From Post-Reflow to Packaging
 Special Pallet Handling, Loading & Unloading
 Product Identification, Print & Apply Labeling System
 Host, Management Information Interface
 Multi-Site Test Handler, End of Line Packaging

Datasheet in PDF file     Size=108KB


Automatic Test Handlers
IRH 4000

 In-Line Multi-Site Test Handler
 DRAM, SODIMM, DDR, RIMM, PC Card Ready
 Ten-Position Tray Buffer
 Out-Going Tray Conveyor
 Touch Screen Controls
 SMEMA Compatible

Datasheet in PDF file     Size=187KB

Test-Label-Package

 Fully Integrated Test, Labeling and Packaging System
 Uses Nortek's widely accepted single site handler
 Label on Demand Per Test, Lot Data
 Reliable Left/Right, Good/Bad Sorting Mechanism
 Modules are loaded into customer specified shipping trays

Datasheet in PDF file     Size=156KB

GFH 2500

 Most widely used, industry accepted single site handler
 Single Site, Direct Insertion, High Frequency Test Handler
 DRAM, DDR, RIMM, PC Card Capable
 Reliable Left/Right, Good/Bad Sorting Mechanism

Datasheet in PDF file     Size=145KB

GFH 2000C

 Conveyor transport from multiple handlers to tray loader
 Standard & Custom Tester Interface
 In-Line Single Site Test Handler
 Modular Line Permits Continuous Line Expansion
 Reliable Left/Right, Good/Bad Sorting Mechanism

Datasheet in PDF file     Size=145KB

GFH 2000

 Most widely used, industry accepted single site handler
 Magazine Feeder System
 Standard & Custom Tester interface
 Reliable Left/Right, Good/Bad Sorting Mechanism

Datasheet in PDF file     Size=124KB



Custom Systems

Precision Robotic Dispensing

 Robotic Dispensing System

Datasheet in PDF file     Size=144KB
